Step 3: Define the parametric geometry model
- Using the ideas provided by Working Model Concept, a new part was created
in the CAD system, as shown in Figure 5. Dimensions were created to alter
key points of the design, such as flange width, flange and web thickness,
and hole diameter. Figure 6 shows the new geometry overlaid with the mesh
from Working Model Concept . This helps verify the new geometry is similar
to the ideas provided by Working Model Concept.

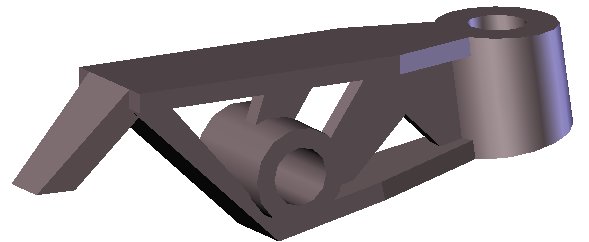

Figure 5: New parametric part.

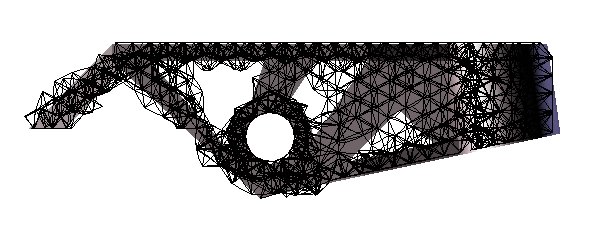

Figure 6: The new part overlaid with the new concept.
 |
|
 |
|||
