Yoke Design Example

---

This section follows the steps for design optimization to design a simple yoke part.

---




Step 1: Define the design space and boundary conditions

A part is needed to transfer a 1500 lb load about 7 in parallel from a supporting structure. Figure 1 shows the defined design space and boundary conditions.

The part will be manufactured with the Aluminum 2024-T3 material.

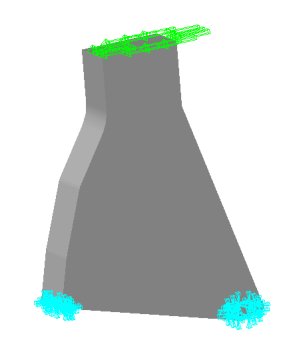

Figure 1: Design Space and boundary conditions.

---
